The Hi-Fi, Final Chapter

Appraisal

The project is underway first with the rat’s nest of wiring. The half century old harness is in surprisingly good shape; all solder joints still intact. Very little rust is present. Dust and grime are abundant. Using this unit daily would be problematic, so I choose to trash this fire hazard wiring.

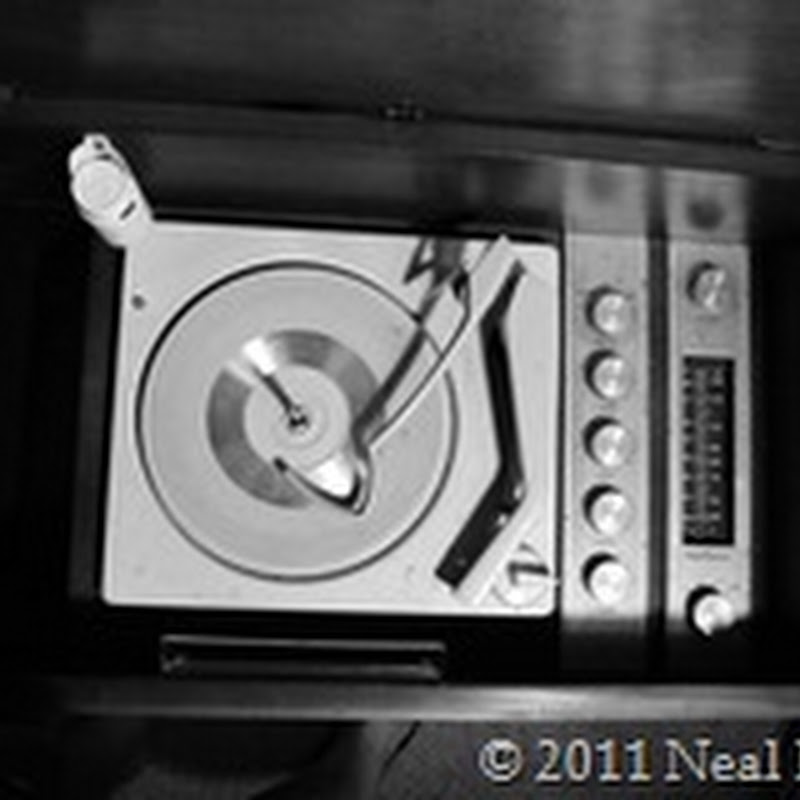

When I energize the unit in 2009, the radio performs well on both AM and FM although the switching between sources is quite scratchy and inconsistent (volume, tone and selector switches need contact cleaner). The ancient tube amplifier powers the built in speakers just fine with more than acceptable fidelity. Audio out of the left side of the cabinet is distorted on bass sounds (I suspect a cracked woofer.) The left loudspeaker is water damaged beyond repair. I keep the right one for a souvenir. The automatic record changer is useless. Even when new it was not exactly state-of-the-art. By 2011, I need a new game plan as far as the electronics are concerned. I decide to purge the contents and start with an empty carcass. What is left concerns me.

Conclusion

On close inspection the hi-fi actually looks better than it is. The unit is made with birch plywood with a rosewood veneer, mostly ½” with a few ⅛” panels. The only solid wood appears to be a long board that reinforces the back and the 4 tapered legs turned in late ‘50 modern style. The top is distressed from years of storage and abuse. The finish has long lost its sheen. A peek underneath the lid reveals what the cabinet must have been in its former glory.

The deeper I dive into the console, the more I am convinced to scrap it altogether before drowning in an unrewarding money pit. Realizing that the old GE console is more of a family relic than a truly vintage representation of hi-fi art, my mission now is to find a better example then restore it. Better yet, I will design and build my own.

Stay Tuned.
